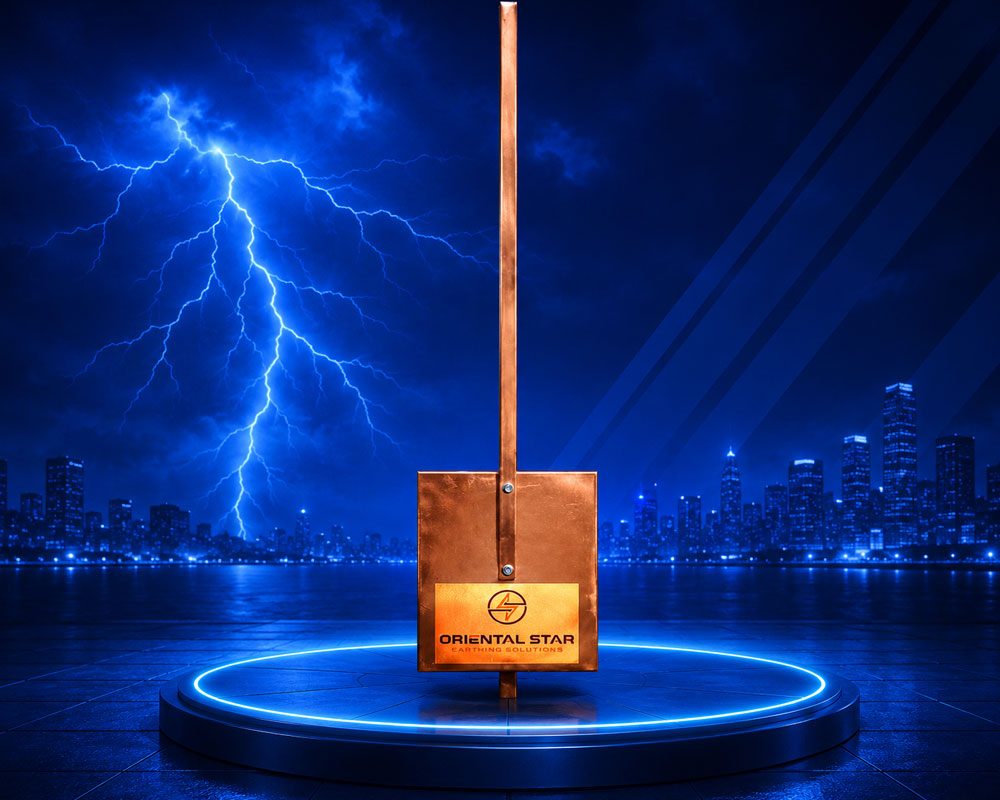

What is Plate Earthing?

Plate earthing is a form of grounding where a copper or galvanized iron plate is buried either horizontally or vertically in the earth to eliminate fault currents using earthing safely. It uses metal plates instead of rods and is considered one of the most dependable methods due to its wide surface area contact with soil that ensures low earth resistance.

With a composition of high purity electrolytic copper, our copper earthing plates are beneficial in diverse soil conditions such as rocky, sandy, and even in highly resistive zones.

Key Features of Our Copper Earthing Plates

• Made out of 99.9 percent pure electrolytic copper
• Available in a variety of sizes and thicknesses
• Long-lasting resistance to corrosion and oxidation
• Excellent conductivity for stable grounding performance
• Complies with IS 3043, IEEE, and IEC grounding standards

Benefits of Copper Plate Earthing

• Stable resistance values over long durations
• Ideal for locations with high fault current discharge
• Maintenance-free when used with backfill compounds
• Suitable for lightning protection systems
• Long service life even in aggressive soil conditions

Product Range and Specifications

Our copper earthing plates come in:

• Standard Sizes: 600 mm x 600 mm x 3 mm, 600 mm x 600 mm x 6 mm, 900 mm x 900 mm x 6 mm
• Material: High-conductivity electrolytic copper
• Edge Finish: Rounded or square
• Connection: Pre-drilled holes for brazing or mechanical joints

We also offer galvanized iron (GI) earthing plates for budget-sensitive or temporary projects.

Applications of Plate Earthing

Our copper plate earthing is widely used in:

• Industrial plants and substations
• Telecom towers and broadcast infrastructure
• Hospitals and healthcare facilities
• Solar and wind energy farms
• Commercial high-rises and data centers
• Electrical panel rooms and transformer yards

Why Choose Oriental Star?

As an experienced copper earthing manufacturer, we focus on delivering field-tested, reliable, and regulation-compliant products.

• In-house manufacturing and quality inspection
• Bulk production capacity for large-scale projects
• Custom sizes and thickness available on request
• Support for site-specific earthing design and testing
• PAN India delivery with technical documentation

Accessories and Supporting Materials

For optimal performance, we also supply:

• Earth pit chambers
• Backfill compounds (Bentonite, GEM, carbon)
• Copper strips and wires
• Earthing clamps and test links
• Lightning arresters

Long-Term Durability and Performance

Our copper earthing plates are designed to withstand India’s diverse climate conditions. From high-moisture coastal zones to dry rocky soils of central and northern India, the corrosion resistance of our plates ensures uninterrupted grounding over decades. When paired with our recommended backfill materials, the plate earthing setup minimizes maintenance while ensuring safety and compliance.

These characteristics make the plates suitable for delicate installations such as transformer substations or data centers with high demands to handle fault currents. In addition to electrical and thermal conductivity, copper is also able to provide low voltage variations and quick dissipation of current.

Site-Specific Design and Engineering Support

Oriental Star Earthing Solutions doesn’t just supply copper earthing plates—we offer engineering assistance. Our technical team assists in:

• Soil resistivity surveys
• Plate dimension selection based on fault current levels
• Backfill compound calculation
• Earth pit layout planning

This ensures optimal grounding performance for your exact site conditions and electrical load requirements.

Testing and Quality Assurance

Every batch of our copper earthing plates is tested for:

• Copper purity (minimum 99.9%)
• Thickness and dimensional accuracy
• Corrosion resistance in different pH conditions
• Electrical conductivity and continuity

We can provide third-party inspection reports, IS-compliant certifications, and government lab documentation for tenders and project submissions.

Use Case Example

In a large solar farm project in Gujarat, Oriental Star provided 600 mm x 600 mm x 6 mm copper plates for grounding each inverter unit. The grounding system successfully passed inspection with resistance levels maintained below 1 ohm, even during monsoon. The team at the site observed minimal degradation after one year of exposure to saline soil which proves the reliability and longevity of the copper-based grounding system we use.

Sustainability and Recycling

We are able to lower life cycle costs with copper, which can be recycled and repurposed after decades of infrastructure use, thus reclaiming copper earthing plates and selling them as scrap when no longer needed.

Areas We Serve

We deliver copper earthing plates across: Delhi, Noida, Ghaziabad, Gurgaon, Faridabad, Panipat, Rohtak, Bahadurgarh, Sonipat, Alwar, Neemrana, Agra, Haridwar, Bhiwadi, Manesar, Greater Noida, Jhajjar, Dadri, Meerut, Karnal, Bawal, Mathura

Contact Us

Looking for a reliable copper earthing supplier?

Get in touch with Oriental Star Earthing Solutions for quality-tested plate earthing materials, copper grounding systems, and PAN India support.

FAQs

Q1. What is the difference between copper and GI plate earthing?

While both have their advantages, copper plate earthing outperformers with higher conductivity, better corrosion resistance, and longer life compared to GI plates, which need more frequent inspection.

Q2. How deep should the plate be buried?

With respect to the site's specific conditions and soil resistivity, plates are typically buried at a depth of 2.5 to 3 meters.

Q3. Do you offer custom dimensions?

Yes. Based on project specifications, we can fabricate custom sized and thickened plates.

Q4. Are these suitable for lightning protection?

Yes. Copper plate earthing is often recommended for lightning protection grounding systems due to its high discharge capacity.

Q5. Do you provide testing and certification?

We provide third-party test reports, copper purity certificates, and factory inspection documents upon client request, thus responding to the initial query.

Q6. May I receive assistance in selecting the appropriate earthing option for my project?

Of course. Our engineers specialize in consulting and accompanying designs to guarantee the earthing installation aligns with the structure's electric load and soil type.
