Earthing Pit Cover & PVC Pit Covers – Oriental Star Earthing Solutions

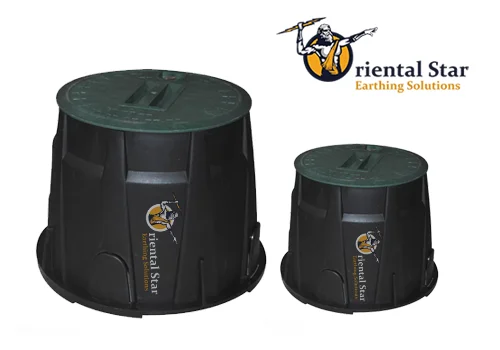

What is an Earthing Pit Cover?

An earthing pit cover is a protective enclosure installed over the earth electrode

We manufacture both conventional and PVC pit covers, depending on load requirements, environment, and site conditions.

Types of Earthing Pit Covers Offered

• 99.9% pure copper composition for excellent conductivity
• High flexibility and tensile strength for easy installation
• Available in solid and stranded types
• Corrosion-resistant even in high-moisture or chemical soil
• Compliant with IS 8130 and IEC standards

Applications of Copper Wire in Earthing

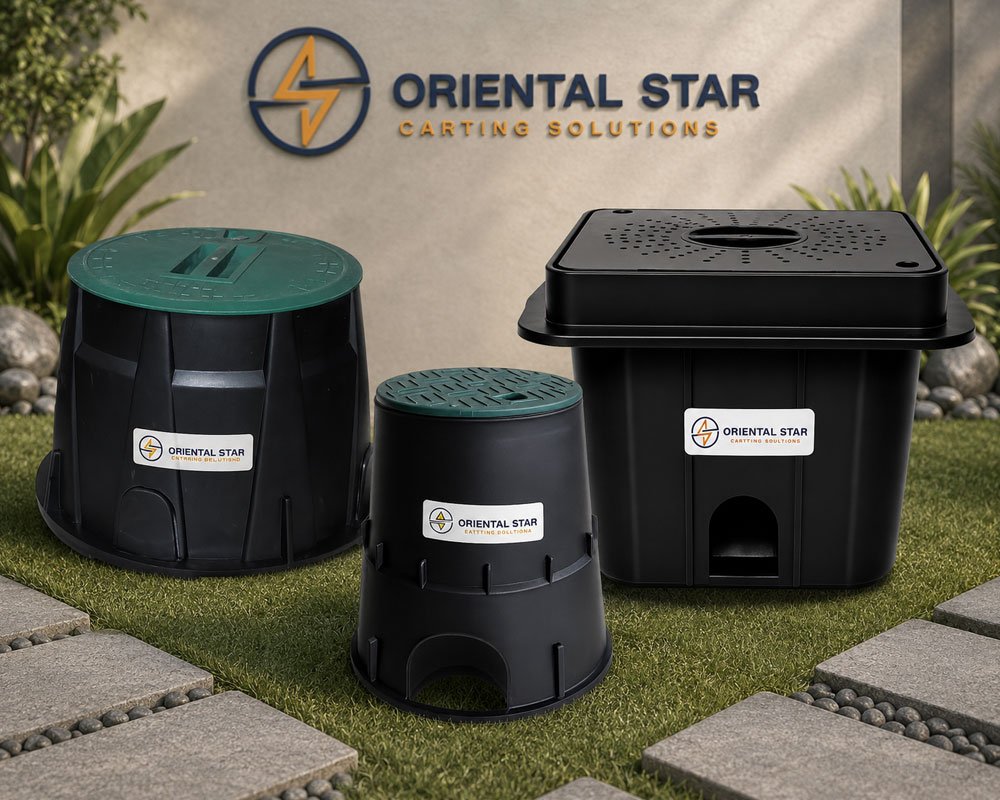

1. PVC Pit Cover

• Lightweight and easy to install
• Non-corrosive and weather-resistant
• UV stabilized for outdoor use
• Available in round and square designs
• Typically used in residential and low-load installations

2. FRP/Composite Pit Cover

• Heavy-duty load-bearing capacity
• Chemical-resistant and long-lasting
• Suitable for high-traffic areas and industrial zones

Key Features of Our Pit Covers

• High structural strength to withstand vehicular or pedestrian load
• Slip-resistant surface finish for added safety
• Lockable design options for tamper resistance
• Lightweight yet durable, reducing handling effort
• ISI-compliant and RoHS certified materials

Applications of Earthing Pit Covers

Our pit covers are used in:

• Earthing pits of residential buildings
• Transformer grounding installations
• Solar power plant earthing systems
• Data centers and commercial campuses
• Factory and warehouse grounding layouts

Sizes and Specifications

We manufacture pit covers in a range of sizes and designs:

• Sizes: 300 mm, 450 mm, 500 mm, 600 mm (round/square)
• Load rating: 2.5 ton to 5 ton
• Materials: PVC, Polypropylene, FRP, Composite resin
• Lid with lifting handle or center bolt

Additional Specifications and Customization Options

• Custom logos or branding on lid (optional)
• Black, green, and grey color variants
• Anti-theft bolt and seal options
• Covers available with central marking point for maintenance ease

These enhancements ensure long-term usability and site-specific flexibility.

Why Choose Oriental Star for Pit Covers?

We are among the few earthing pit cover manufacturers in India who offer both standard and custom options for PVC and FRP pit covers. Our products are field-tested for strength, exposure, and fitment.

• Custom logos or branding on lid (optional)
• Black, green, and grey color variants
• Anti-theft bolt and seal options
• Covers available with central marking point for maintenance ease

Importance of a Quality Pit Cover

Installing a durable earthing pit cover ensures:

• Continuous safety for maintenance personnel
• Long-lasting protection of electrodes and connections
• Better insulation from moisture ingress
• Simplified testing of earth resistance

A compromised pit cover can result in electrode failure, soil erosion around the pit, and unsafe conditions for people and assets nearby.

Real-World Use Cases

In a commercial facility in Noida, Oriental Star supplied over 150 PVC pit covers for a solar farm grounding system. The covers helped the maintenance team access electrode chambers easily during quarterly inspections.

In a factory installation in Manesar, we delivered composite pit covers rated for 5-ton loads. These were used in parking lots and main access roads without showing signs of structural failure even after two years.

Compatible Earthing Accessories

• Maintenance-free electrodes
• Copper/ G.I. strips and wires
• Ground enhancement materials
• Earth testing terminals

Our pit covers are fully compatible with various electrode designs and trench layouts.

Delivery Areas

We supply earthing pit covers across: Delhi, Noida, Ghaziabad, Gurgaon, Faridabad, Panipat, Rohtak, Bahadurgarh, Sonipat, Alwar, Neemrana, Agra, Haridwar, Bhiwadi, Manesar, Greater Noida, Jhajjar, Dadri, Meerut, Karnal, Bawal, Mathura

Installation Guidelines

• Excavate earthing pit to suitable depth
• Place the pit chamber centrally above the electrode
• Align the pit cover with the inspection terminal
• Backfill with stone dust or sand for stability
• Bolt or clamp the lid to prevent tampering

Proper installation ensures minimal maintenance and long product life.

Contact Us

Searching for a trusted earthing pit cover supplier?

Reach out to Oriental Star Earthing Solutions for certified PVC pit covers, FRP pit covers, and custom solutions with PAN India shipping and technical suppo

FAQs

Q1. What is the standard size of a PVC pit cover?

Common sizes include 300 mm and 450 mm round covers. Custom sizes are also available on request.

Q2. Are your covers load-tested?

Yes. All covers are tested as per IS standards and rated for 2.5 to 5-ton loads based on model.

Q3. Can PVC pit covers be used in industrial areas?

We recommend FRP or composite pit covers for heavy-load or industrial sites.

Q4. Do you offer lockable covers?

Yes, we offer bolt-type and center-lock models for tamper resistance.

Q5. Can I order bulk quantities?

Yes, we cater to contractors, OEMs, and EPCs requiring large volume pit covers with consistent quality.

Q6. Are your products UV resistant?

Yes. Our PVC and FRP covers are UV stabilized to withstand long-term sun exposure.

Q7. Do you provide test certificates?

Yes. Upon request, we offer load test reports and compliance certificates with each shipment.
